Precision CNC Machining for an Avionics Test Device Enclosure
Client Case Study: Precision Aluminum Enclosure for Aerospace Test Device
1. Client Profile:
A developer of next-generation avionics test equipment required a custom housing for a portable data acquisition unit. The client's specifications demanded a durable, lightweight, and professional-grade enclosure that could withstand frequent handling in hangar and workshop environments.
2. Project Challenge: To produce a 6061-T6 aluminum enclosure with the following critical requirements:
A rigid yet lightweight structure to protect sensitive internal electronics.
A non-reflective, durable finish suitable for professional and industrial use.
Precise cutouts for connectors, ventilation, and mounting with tight tolerances (±0.05mm).
A premium aesthetic with custom branding.
3. Our Precision Manufacturing Solution:
Our team provided a complete manufacturing solution from prototyping to final production.
3.1. Precision CNC Machining:

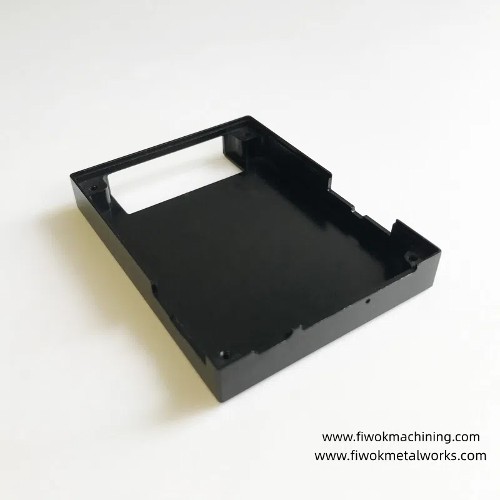

The main housing, base plate, and front panel were machined from solid 6061-T6 aluminum billets using our 3 axis CNC centers. This process ensured exceptional dimensional accuracy for all critical interfaces, connector ports, and internal mounting bosses, guaranteeing a perfect fit for the client's components.
3.2. Surface Finishing & Detailing:
Blasting & Anodizing: The parts underwent fine-grade abrasive blasting to achieve a uniform matte texture, followed by a deep black Type II anodizing. This process provided superior corrosion and wear resistance and met the client's requirement for a non-glare, professional appearance.
Chamfering & Edge Breaking: All external edges received a precision chamfer. This decorative detailing elevated the product's aesthetic, eliminated sharp edges for safety, and enhanced the overall feel of quality.
3.3. Custom Branding:

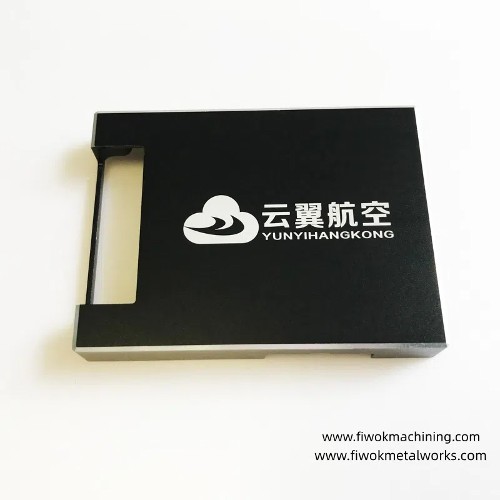

A high-contrast, permanent logo was applied via laser engraving. The laser parameters were carefully calibrated to mark through the anodized layer, revealing the bright silver substrate of the aluminum underneath, creating a crisp and durable branding solution that would not wear off.
4. Quality Assurance:
Each part underwent rigorous inspection, including dimensional verification with precision gauges and a visual check for finish consistency.
The final assembly was test-fitted to ensure seamless integration of all components.
5. The Result & Client Benefits:
We delivered a batch of 1000pcs enclosures that exceeded the client's expectations:
5.1. Functionality:The enclosure provided robust protection and flawless integration with the internal electronics.
5.2. Durability:The anodized finish proved highly resistant to scratches and chemical exposure common in aerospace environments.
5.3. Professional Aesthetic: The combination of matte black finish, precise chamfers, and clean laser engraving gave the product a high-value, market-ready appearance.
5.4. Trust & Partnership: The client commended our attention to detail and ability to translate design intent into a tangible, high-quality product. This successful project established us as their trusted partner for future enclosure needs.
"The quality and precision of the enclosures were critical for our brand perception in the competitive aerospace market. The manufacturer's expertise in combining functional CNC machining with premium surface finishing delivered a product that looks and feels as advanced as the technology inside." — Client Project Engineer
