Engineering project study of Case 008 by FIWOK METALWORKS, demonstrating high-precision simultaneous 5-axis CNC machining capabilities for a custom 6061-T6 aluminum mounting block. Operating from our Shenzhen factory facility since 2012 with 14+ years of industrial mechanical expertise, our machine shop utilizes multi-axis CNC milling centers to execute complex V-shaped inclined surfaces, oblique counterbores, and multi-angle datum alignment. This contract run of 100 pieces highlights our specialized tool orientation pathways to eliminate repeated workpiece re-clamping and control positioning drift. Executed with zero product development involvement, our production follows customer blueprints strictly to support stable automation components assembly with tight linear tolerances stable down to ±0.005mm. Inline quality tracing was verified via digital height gauges and VMS optical projectors to ensure traceability.

This case demonstrates precision CNC turning of multi-material threaded components for industrial equipment and OEM applications. FIWOK METALWORKS supports stainless steel, brass, aluminum, copper, and engineering plastic CNC turned parts with drawing-based review and batch production support.

Engineering brief for Case 010: FIWOK METALWORKS (Shenzhen, China, founded 2012) demonstrates precision contract CNC turning capabilities for a custom brass threaded shoulder stud used in industrial equipment fastening and mechanical assemblies. Machined under a strict build-to-print framework from high-quality bar stock, this cylindrical component integrates an external thread, a step shoulder structure, and a concentric precision drilled through hole. Linear tolerances are controlled strictly according to customer drawing requirements, supporting tight tolerances down to +/-0.005mm based on component features. Production capability spans recurring batch manufacturing and scalable repeat-order production runs from 50 to 100,000+ pieces, maximizing cost efficiency. Inspection protocol utilizes digital vertical height gauges, precise pin gauges, and calibrated thread gauges to verify assembly compatibility and thread consistency. No EDM or CMM was used.

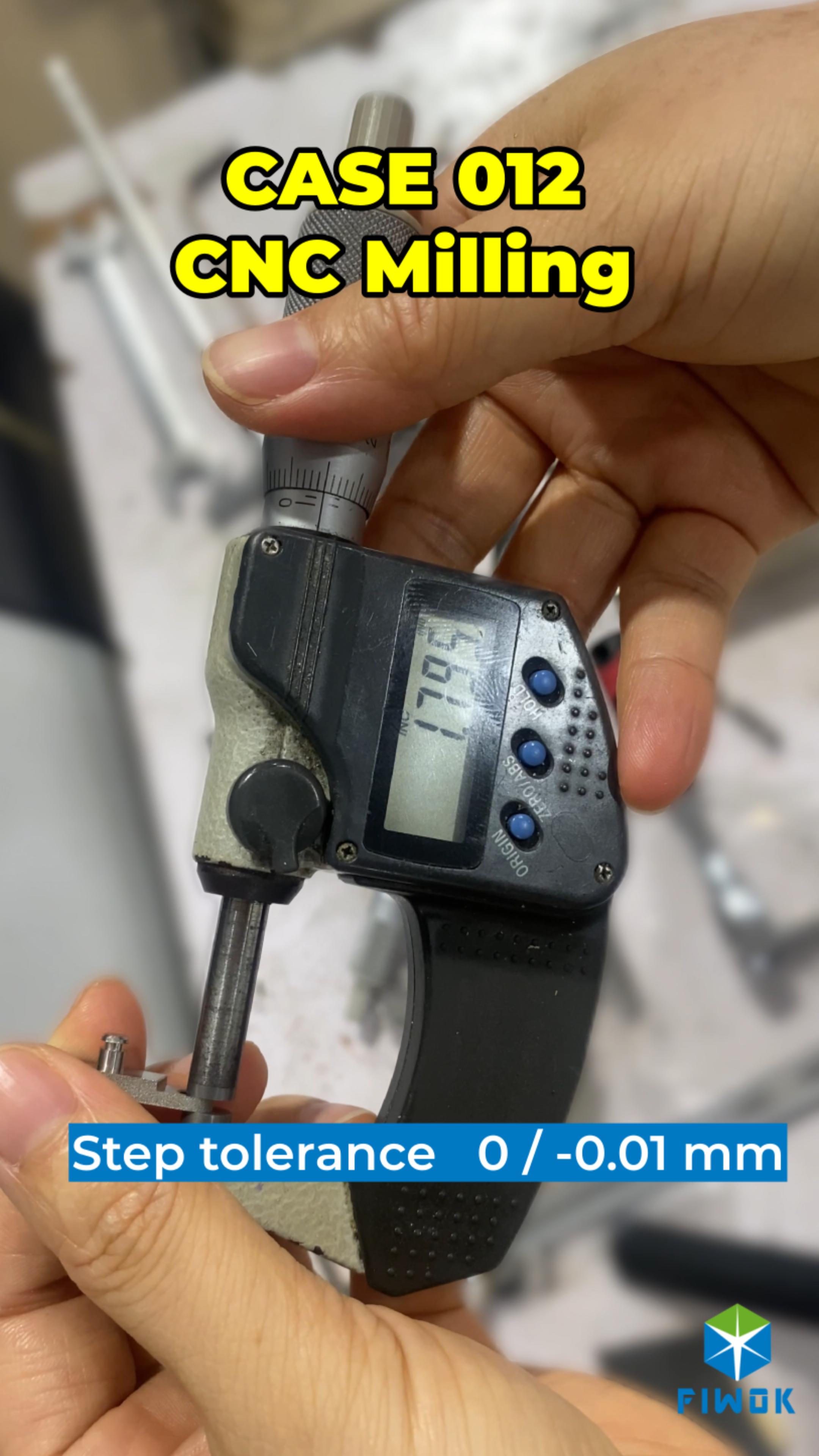

This case demonstrates CNC milling of a stainless steel 304 precision step locating component used for precision positioning. The project required stable machining control, as-machined surface finish, and inspection based on drawing requirements.

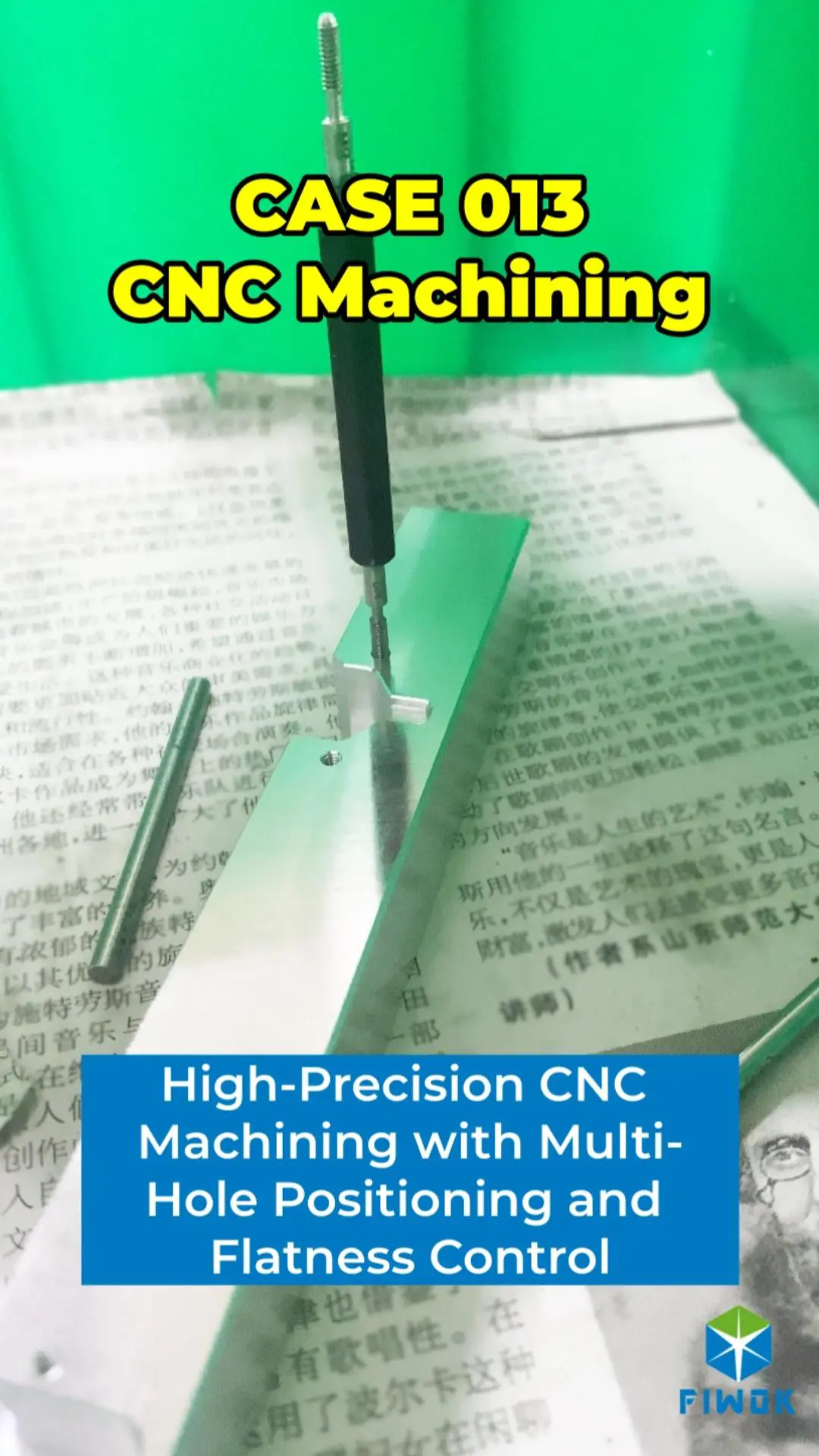

This case demonstrates CNC milling of a precision Aluminum 7075 fixture base plate used for industrial fixture, equipment assembly, and positioning systems. The project focused on multi-hole positioning, flatness control, drawing-based inspection, and low-to-medium volume production support.

This case demonstrates the machining, surface finishing, and protective packaging process for a large CNC machined aluminum base plate. The component was manufactured using CNC milling, anodized according to specifications, and packed with multi-layer protection to support safe transportation for industrial equipment applications.
