008 Precision Aluminum Mounting Block – 5-Axis CNC Machining
5-Axis CNC Machining of Precision Aluminum Mounting Block | Case 008 | FIWOK METALWORKS
This technical case study details the drawing-based precision 5-axis CNC machining and manufacturing process of a custom 6061-T6 aluminum mounting block configured with a highly complex V-shaped inclined surface. Headquartered in Shenzhen, China, and established since 2012, FIWOK METALWORKS operates as a trade-and-factory integrated precision facility specializing strictly in build-to-print custom contract manufacturing for global engineering clients, ensuring 100% material source traceability and dimensional consistency.
1. Project Introduction & Sourcing Overview
This application involved contract simultaneous 5-axis CNC machining of a custom aluminum mounting block specialized for high-stability industrial equipment and automation systems. Featuring an intricate V-shaped inclined surface, multi-angle counterbores, and difficult-to-reach pockets, the component acts as a critical structural adapter and structural alignment base within optoelectronic mating assemblies.
Our production logging captures the hardware at its semi-finished validation stage, where the intricate front face contouring has been completely executed, allowing the raw block to sit square for the following backside open-pocket clearing tracking. For complex multi-axis geometric parts, FIWOK METALWORKS maintains a strict engineering review phase, optimizing synchronous CAM pathways to drop manual vice re-clamping interventions.
2. Engineering Specifications & Project Details
| Engineering Parameter | Verified Production Value |
|---|---|
| Case Number | Case 008 |
| Part Name | Custom Precision Aluminum Mounting Block |
| Material Grade | Aircraft-Grade 6061-T6 Aluminum Alloy (100% Source Traceable) |
| Machining Operations | Simultaneous 5-Axis CNC Milling / Multi-Angle Face Contouring |
| Key Geometry | Complex V-shaped inclined plane, multi-axis oblique bores, tight pocket positions |
| Linear Tolerance | Controlled strictly to your drawing requirements, supporting tight linear tolerances down to ±0.005mm based on component features. |
| Production Stage | Semi-finished validation phase (Front face features profiling completed) |
| Production Volume | 100 pcs run (Capacity handles low-to-medium SME volume batches from 10 to 10,000+ pcs) |
| Quality Gating | VMS Optical contour profile tracking + Calibrated height indicator records |
3. 5-Axis Machining Capability Highlights & Setup Control
Complex Angled Surfaces Milling: Simultaneous multi-axis routing layouts permit our tools to carve multi-angle geometries, inclined profiles, and deep subterranean pockets smoothly without generating micro segment tool paths marks or step boundaries mismatches.
Single-Setup Spatial Accuracy: Processing complex mounting blocks across 5 axes within a single automated clamping cycle drastically shatters cumulative positioning stack error tracking, protecting absolute geometric continuity and surface true flatness parameters.
6061-T6 Aluminum Material Stability: Premium raw 6061-T6 alloy delivers pristine machinability ratings and great thermal dissipation limits, rendering it the benchmark choice for industrial equipment adapters and optomechanical mounting platforms.
Scalable Cost Efficiency Matrices: By utilizing automated continuous systems, setup amortizations drop sharply as volume increases. Our standard framework translates stabilized workflows, fixed tool coordinates, and zero-defect inspections into significant cost savings for clients managing recurring mid-to-large-scale component orders.
4. Common CNC Milling Materials Support
FIWOK METALWORKS manufactures precision cylindrical and prismatic assets out of an extensive selection of standard metals and plastics, adjusting feed dynamics to match compound density:
- Aluminum Grades (6061-T6, 7075-T6, MIC-6): Ideal for lightweight turned components, protective electronics sleeves, adapters, alignment housings, and aerospace structures.
- Stainless Steel (303, 304, 316L): High-strength shafts, medical pins, fluid bodies, marine fittings, and threaded adapters facing heavy corrosive environments.
- Brass / Bronze Alloys: Selected for fluid control connections, fasteners, custom studs, contact terminals, electrical hardware, and low-friction wear bushings.
- Engineering Plastics (PEEK, POM/Delrin, Nylon): Provides critical electrical insulation, non-magnetic structures, lab spacers, low-friction bushings, and lightweight wear guides.
5. Surface Finish Options for Precision Milled Parts
Post-processing selection is mapped to material behaviors, surface defense specs, and spatial fit parameters. While Case 008 maintains an as machined boundary, we coordinate with vetted suppliers to execute specialized options:
- As Machined Finish: Preserves pristine print dimensions and clean machine lines; perfect for concealed internal hardware and structural fittings.
- Anodizing (Type II / Type III Hardcoat): Builds uniform electrochemical oxidation layers on aluminum turned sleeves, expanding surface hardness and color options.
- Industrial Metal Plating: Includes nickel, passivated zinc, chrome, or gold plating on steel or brass turned parts to boost electrical conductivity or rust defenses.
Discover more about our finish matching policies: View Surface Finishing Services
6. Production Video Demonstration
Video source location: https://www.youtube.com/shorts/vVDOh007kxs
7. Contract 5-Axis Machining Technical FAQ
Linear and diametrical features are processed strictly according to drawing requirements. Our multi-axis machining centers stably support continuous positional tolerances down to ±0.005mm.
Yes, our simultaneous 5-axis milling setups complete multi-sided features within a single continuous tool path loop, eliminating accumulated errors caused by manual multi-clamping changes.
All incoming bars undergo physical testing. We compile certified material records, RoHS compliance documentation, and mill certificates (MTRs) for absolute traceability.
The log captures our intermediate process checkpoint after completing front face profiling. The workpiece block is then flipped onto precision grounds to clear the remaining back datums.
Our lab explicitly does not operate corporate CMM or EDM lines. Inspection routing is fully executed using high-precision 2D VMS optical contour projectors and digital height encoding masters.
No. To safeguard rapid quote loops, granular tool path DFM analysis is conducted strictly upon request or for highly complex profiles to balance technical workload boundaries.
We maintain robust support for small-to-medium (SME) flexible volume orders, supporting prototype runs starting at MOQ 1 up to scalable batch distributions from 10 to 10,000+ pieces.
Our facility manages custom hardware delivery runs natively for advanced engineering fields across the United States, United Kingdom, Germany, Canada, Australia, and the Netherlands.
Related Precision CNC Machining Case Studies

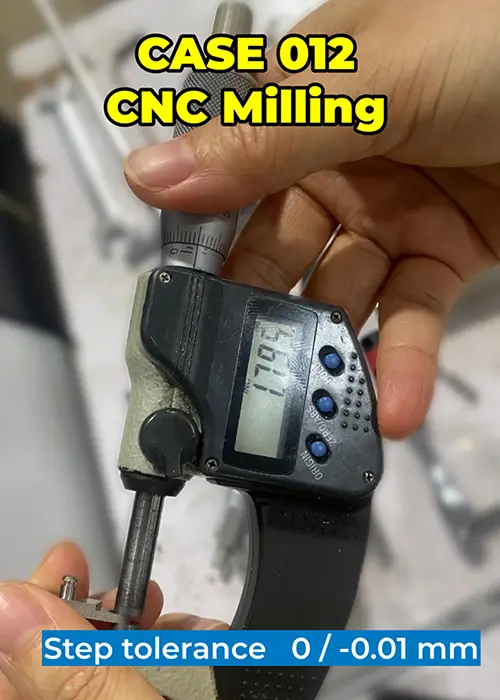

Precision Step Locating Component CNC Milling | Case 012
High-precision step locating components milled with meticulous depth control and inline validation loops.
View Full Case Analysis →

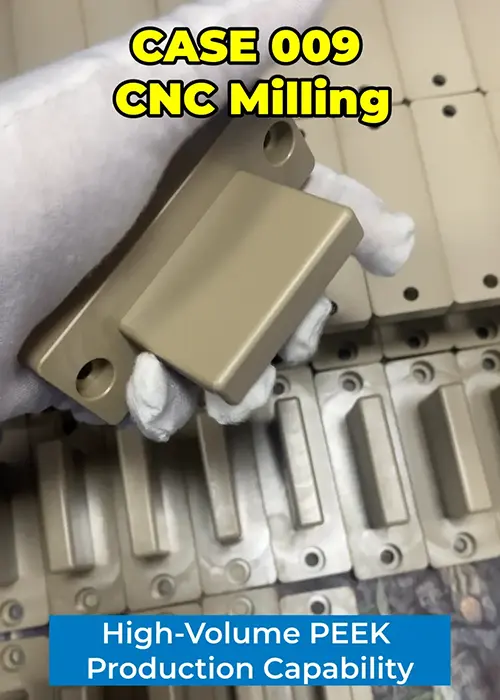

CNC Milling PEEK Laser Equipment Mounting Block | Case 009
